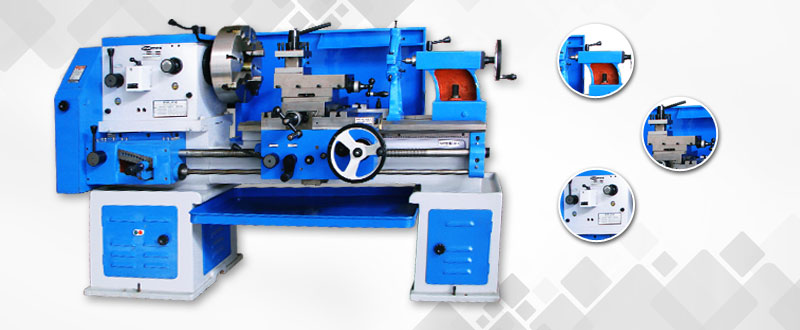

SEMI GEAR (SL- III)

MODEL		65-HD	80-MD	100-LD
LENGTH OF BED		1980	2440	3050
WIDTH OF BED		355	355	355
HEIGTH OF CENTER		305	305	305
SWING OVER BED		575	575	575
SWING IN GAP		840	840	840
SWING OVER CROSS SLIDE		390	390	390
SPINDLE HOLLOW		80	80	80
ADMIT BETWEEN CENTRES		950	1400	2000
NO. OF SPINDLE SPEEDS		6	6	6
RANGE OF SPINDLE SPEED R.P.M.		40-600	40-600	40-600
NO. OF FEEDS		18	18	18
RANGE OF T.P.I. THREAD CUT		4-56	4-56	4-56
RANGE OF M.M. THREAD		0.5-6	0.5-6	0.5-6
DIA & T.P.I. OF LEAD SCREW		43/4	43/4	43/4
TAPPER IN TAIL STOCK		MT-4	MT-4	MT-4
POWER REQUIRED IN H.P. C.P./S.G.H		3	3	3
APPROX. WEIGHT IN KGS.		1800	2000	2500
DRIVING BELTS	C.P.	B-54/2	B-54/2	B-54/2
DRIVING BELTS	S.G.H.	B-44/2	B-44/2	B-44/2
