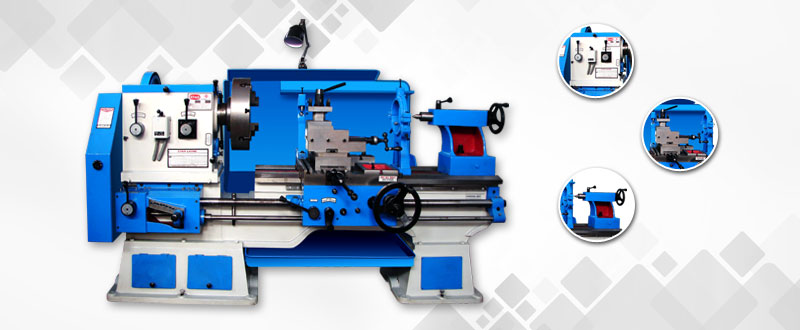

SEMI GEAR (SL- IV)

MODEL		85-HD	100-MD	120-LD
LENGTH OF BED		2590	3050	3660
WIDTH OF BED		406	406	406
HEIGTH OF CENTER		368	368	368
SWING OVER BED		695	695	695
SWING IN GAP		1060	1060	1060
SWING OVER CROSS SLIDE		500	500	500
SPINDLE HOLLOW		92	92	92
ADMIT BETWEEN CENTRES		1370	1825	2425
NO. OF SPINDLE SPEEDS		6	6	6
RANGE OF SPINDLE SPEED R.P.M.		30-450	30-450	30-450
NO. OF FEEDS		18	18	18
RANGE OF T.P.I. THREAD CUT		2-28	2-28	2-28
RANGE OF M.M. THREADS		0.5-2	0.5-2	0.5-2
DIA & T.P.I. OF LEAD SCREW		50/2	50/2	55/2
TAPPER IN TAIL STOCK		MT-4	MT-4	MT-4
POWER REQUIRED IN H.P.		3	5	5
APPROX. WEIGHT IN KGS.		2800	3000	3300
DRIVING BELTS	C.P.	B-65/2	B-65/2	B-65/2
DRIVING BELTS	S.G.H.	B-47/2	B-47/2	B-47/2
